Large Capacity Flotation Cell with External Air Supply for Continuous Mineral Processing
Product Overview
The Large Capacity Flotation Cell is designed for continuous flotation operations in medium and large mineral processing plants. Multiple cells can be configured according to plant capacity and flotation process requirements.
With mechanical agitation and an independent external air supply system, the equipment is suitable for industrial flotation of non-ferrous, ferrous and non-metallic minerals.
Key Features
Large-Scale Application
Suitable for continuous flotation operations in medium and large mineral processing plants.
Independent External Air Supply
Air is supplied separately by a blower, and the air volume can be adjusted according to operating requirements.
High Slurry Circulation
The impeller design provides strong slurry circulation, supporting mineral suspension and air dispersion.
Multi-Cell Configuration
Multiple flotation cells can be arranged according to plant capacity, flotation stages and process layout.
Reduced Solids Accumulation
The U-shaped tank design helps reduce solids settling inside the flotation cell during operation.
Continuous Multi-Cell Operation
Multiple flotation cells can be arranged into a continuous flotation circuit according to plant capacity and process requirements.
Cell quantity, arrangement and operating conditions can be selected according to the required flotation stages, providing flexibility for different mineral processing plant layouts.
XCF II & KYF II Configuration
XCF II and KYF II pneumatic mechanical flotation cells can be combined according to process requirements.
XCF II provides slurry suction capability and can be used where feed or intermediate slurry suction is required.

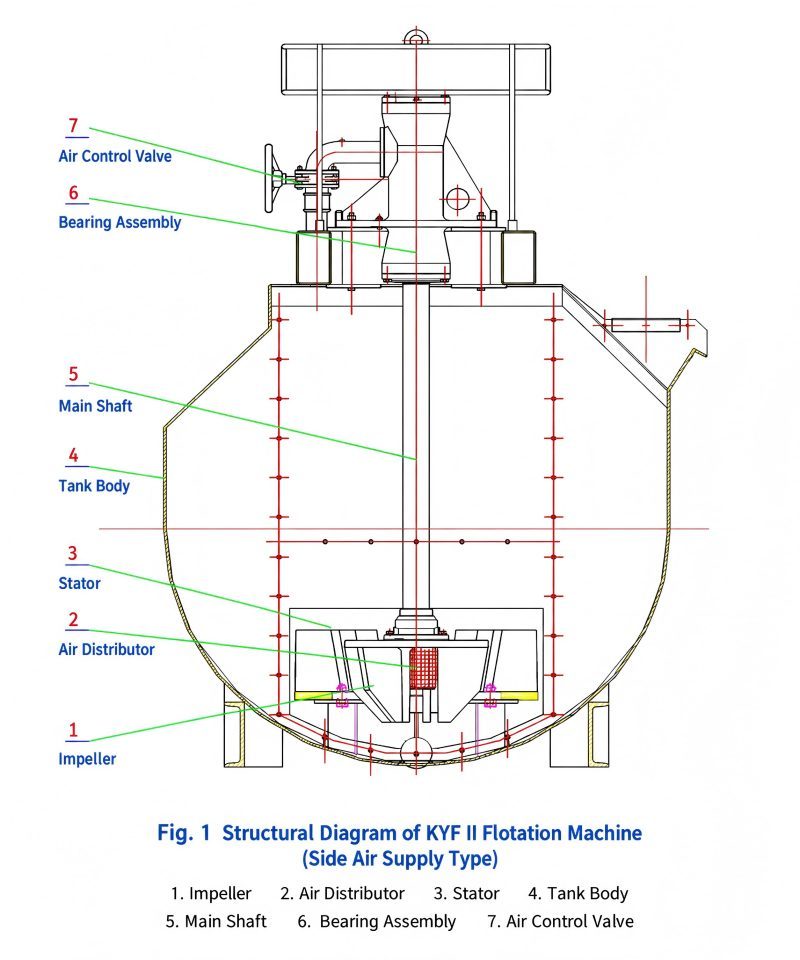

KYF II operates without slurry suction and can be arranged in subsequent cells.
When used together, XCF II and KYF II cells can be installed at the same level, simplifying the flotation circuit arrangement.
Applications
Suitable for flotation processing of:
- Non-Ferrous Minerals
- Ferrous Minerals
- Non-Metallic Minerals
The equipment can be applied to roughing, scavenging and cleaning operations.
Applicable Feed Particle Size: 0.3-0.01 mm
− 0.074 mm Fraction: approximately 50%-90%
Equipment Selection
Flotation cell configuration should be determined according to actual plant and process conditions.
For equipment selection, please provide:
- Ore Type
- Required Processing Capacity
- Feed Particle Size
- Pulp Conditions
- Flotation Flowsheet
- Required Flotation Stages
Based on these conditions, the appropriate flotation cell model, cell quantity and arrangement can be selected.
Frequently Asked Questions
Can multiple flotation cells be configured as one flotation circuit?
Yes. Cell quantity and arrangement can be selected according to plant capacity, flotation stages and process requirements.
What information is required for equipment selection?
Please provide the ore type, required processing capacity, feed particle size, pulp conditions and flotation flowsheet.
